Evolution Hoop Frame Upgrade Kit

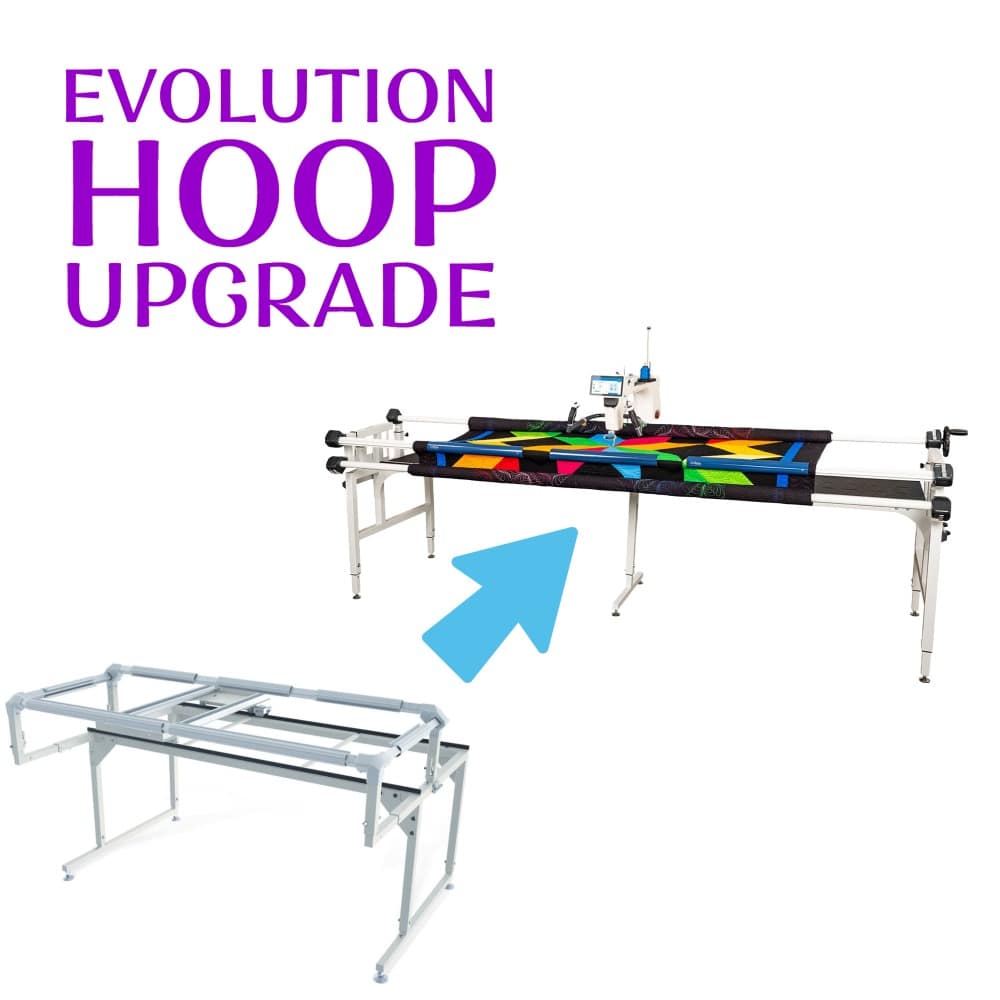

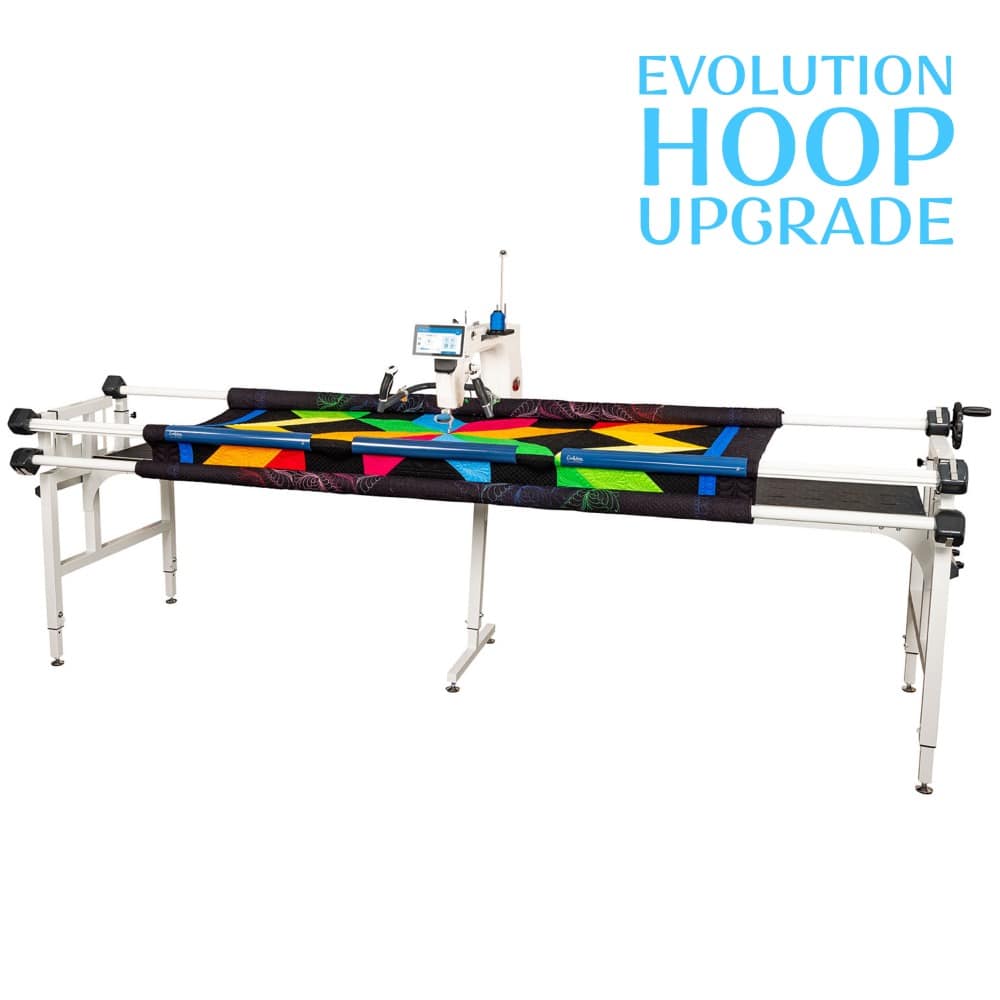

Expand your frame and maximize your quilting space with the Evolution Hoop Frame Upgrade and Extension Kits. This is the perfect solution for quilters who began with the Evolution Hoop Frame to save space with a 5 1/2-foot frame, and are now ready to upgrade and expand to an 8, 10, or 12 foot rolling rail quilting frame!

The Place to Shop for Evolution Hoop Upgrade Kits!

Our Evolution Hoop Upgrade Kits are unique - we include both the upgrade kit which transforms your Evolution Hoop Frame to the Evolution Elite Frame.

We also include the extension kits needed to expand the frame to 8, 10, or 12 feet. To decide how big to go, make sure to check out this size chart and measure your quilting space carefully to be sure you'll have room to fit your new frame:

What Changes When You Upgrade the Evolution Elite Frame

When you upgrade and expand your Evolution Hoop Frame, it will change your frame from a hybrid frame to Rolling Rail Style Frame only.

This means if you will no longer be able to load hoop-frame style.

Make sure to check out the Maximum Quilt Width column in the chart above. This is the maximum width of quilt top you can load for an 8, 10, or 12 foot Evolution Elite Frame. You will not be able to load a 100 inch quilt on an 8 foot frame because there isn't enough space to attach it, plus your machine will not be able to reach to stitch it in place.

What Else Will I Need to Upgrade My Evolution Hoop Frame?

You will need the accessories included with your Evolution Hoop Frame used to switch the frame to rolling-rail style loading. This includes the hand wheel, bolt to attach the hand wheel, and end cap.

These parts were included with your Evolution Hoop Frame, so make sure you have them on hand to be ready for this upgrade.

Important Evolution Hoop Frame Upgrade Details

• The Evolution Hoop Frame counts as a 5 foot section. You can create odd sizes of this frame, but the cost is prohibitive so we only support upgrading to the even sizes: 8, 10, and 12 feet.
• The maximum frame length is 12 feet. The Grace Company does not offer leader cloth or tracks for frames longer than 12 feet.
• Once you upgrade your Evolution Hoop Frame to an Evolution Elite, it will only be a rolling rail style quilting frame.

Frequently Asked Questions About this Upgrade

Can I purchase the 12 foot upgrade and only set the frame up at 10 feet?

Yes, when you purchase the 12 Foot Upgrade, you will receive the Upgrade Kit, a 5 Foot Extension Kit, and 2 Foot Extension Kit. Set the 2-Foot Extension aside for later and upgrade and expand your frame to 10 feet using the Upgrade Kit and 5-Foot Extension.

The 2-Foot Extension Kit is small enough to store in a closet or under a tall bed. When you're ready, you can then expand the frame to 12 feet using the pieces in this kit.

Will I need a longer power cord for my machine?

Qnique Longarms and the Little Rebel Sewing Machine have 6 foot cords. When set at the full length 12 feet, the actual space the machine will roll will be within 130 inches, which will work with the 6-foot power cord plugged in the middle of the frame.

If you don't have a convenient outlet, use a surge protecting power strip and place it on the wall, centered with the back of the frame. This will allow the machine to roll freely to the full length of the frame in both directions.

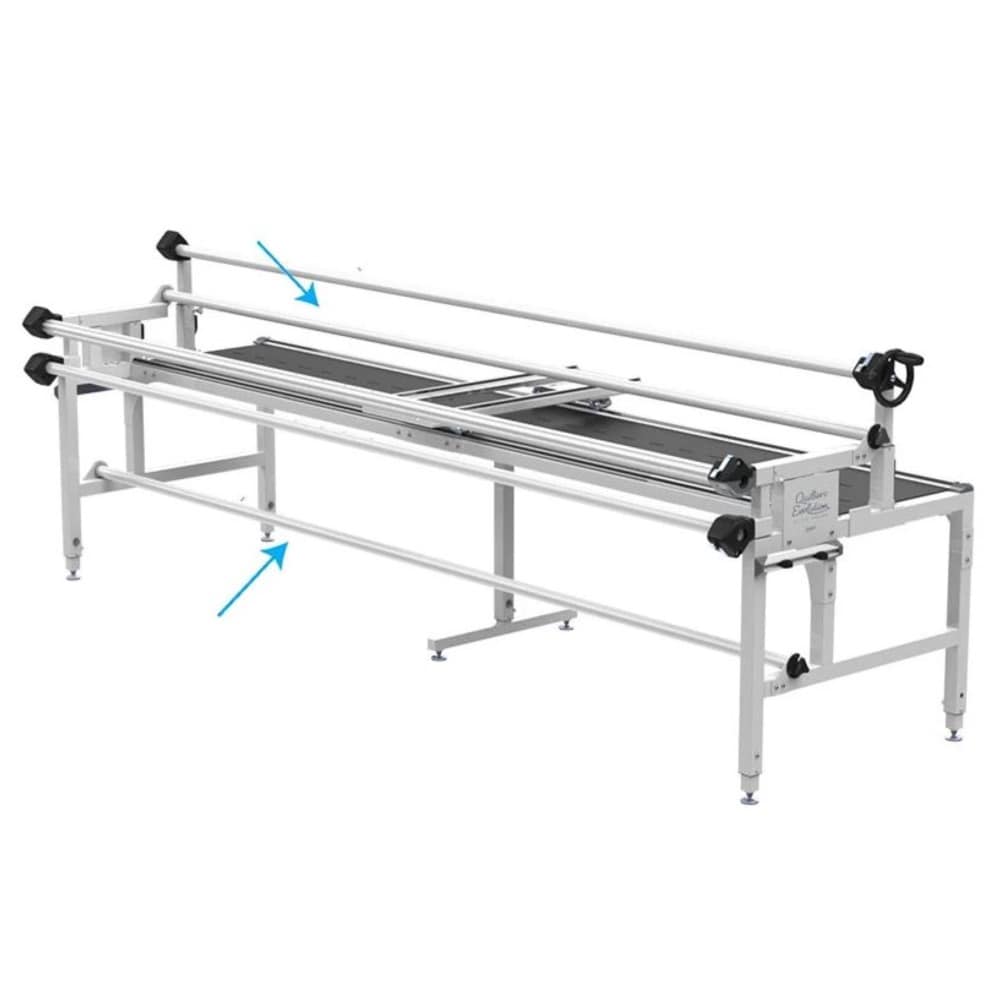

Add Additional Rails to Your Evolution Frame!

Idler Rail - When quilting on the Evolution Elite Rolling Rail Frame, your quilt will roll up on the single back take-up rail. When you advance the quilt, you'll need to adjust this rail higher so the bulky quilt doesn't press against your machine.

This adjusting is easy, but adds extra time to loading and advancing your quilt. If you'd like a faster quilting process where you never have to adjust your back rail, you need an Idler Rail.

This rail adds an additional back rail to your frame that allows your quilt to roll up higher in the arm of your machine. This rail rests 1/4-inch above the bed of your machine and allows the quilt to flow around and up to the new back rail position.

Note - This rail will reduce your quilting space slightly. It is not recommended for use with home machines or Qnique 15 longarms.

Batting Rail - This rail is added to the bottom legs of your frame and is designed to hold the batting for 1-2 quilts rolled up and off the floor. This rail keeps your quilting space tidy and your batting clean.

Note - These additional rails are interchangeable so the box will be labeled as Idler / Batting Rail.

Non-Returnable Product - The Evolution Elite Upgrade Kit is not returnable or refundable. Please contact us with any questions you have about upgrading your frame so you can make an informed purchase.
